The FUEL SCRAM/7 project started 2 years ago when Mark from Australia participated into the Scram Africa, a trip to desert for classic and neoclassic bikes organized by us.
After that experience hi asked us to build a bike to participate again this year.

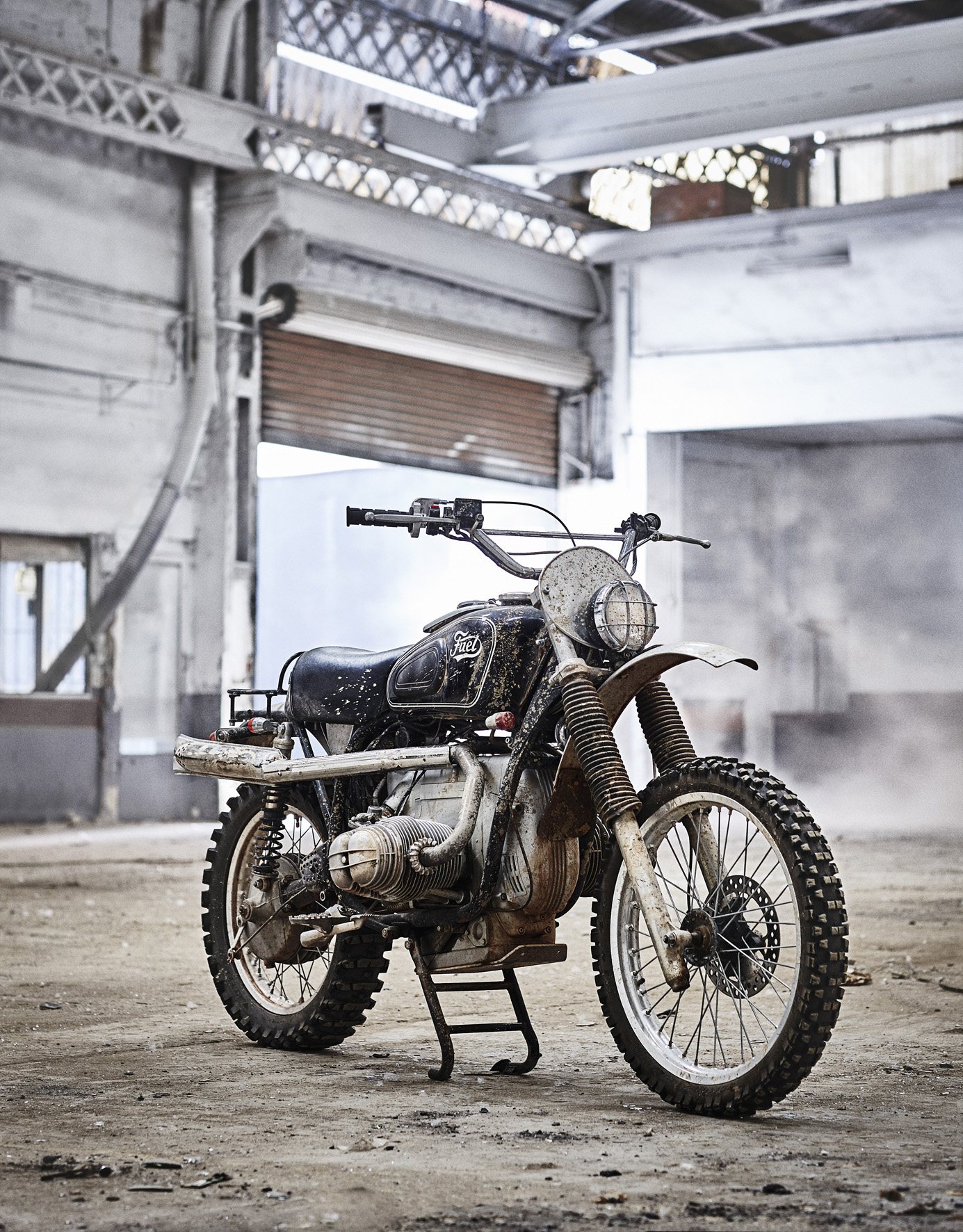

The donor bike is a BMW R100/7 from 1977 and the main goal was to convert that road bike into a scrambler .

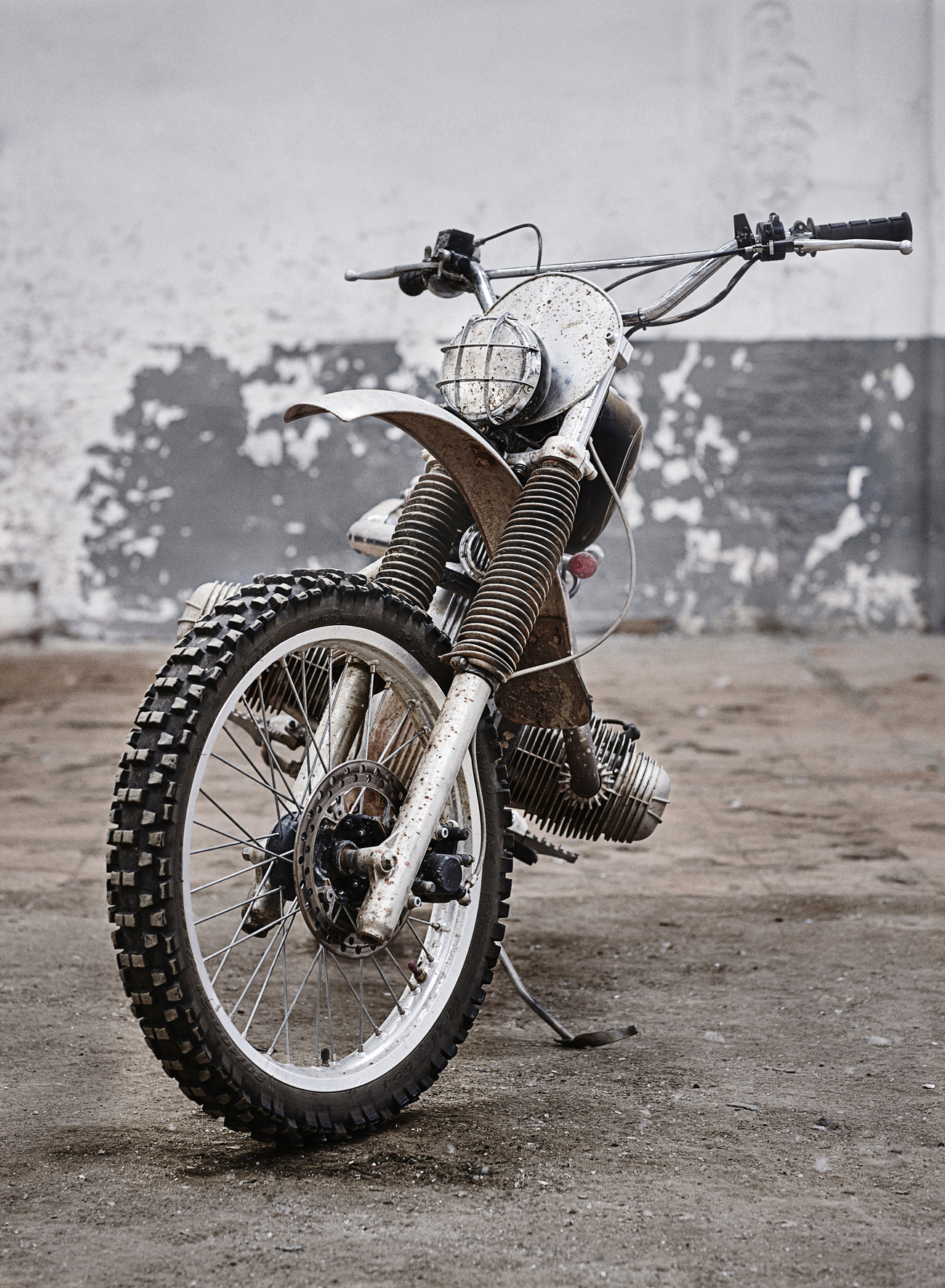

To achive that goal we start changing the entire front for a Suzuki DR 650 fork and 21”wheel. The fork was trimmed for better bike geometry and the rear shocks were replaced for a longer Ohlins ones.
To get even more height we remove the original oil pan for a new one more robust and narrow getting more height on the bike

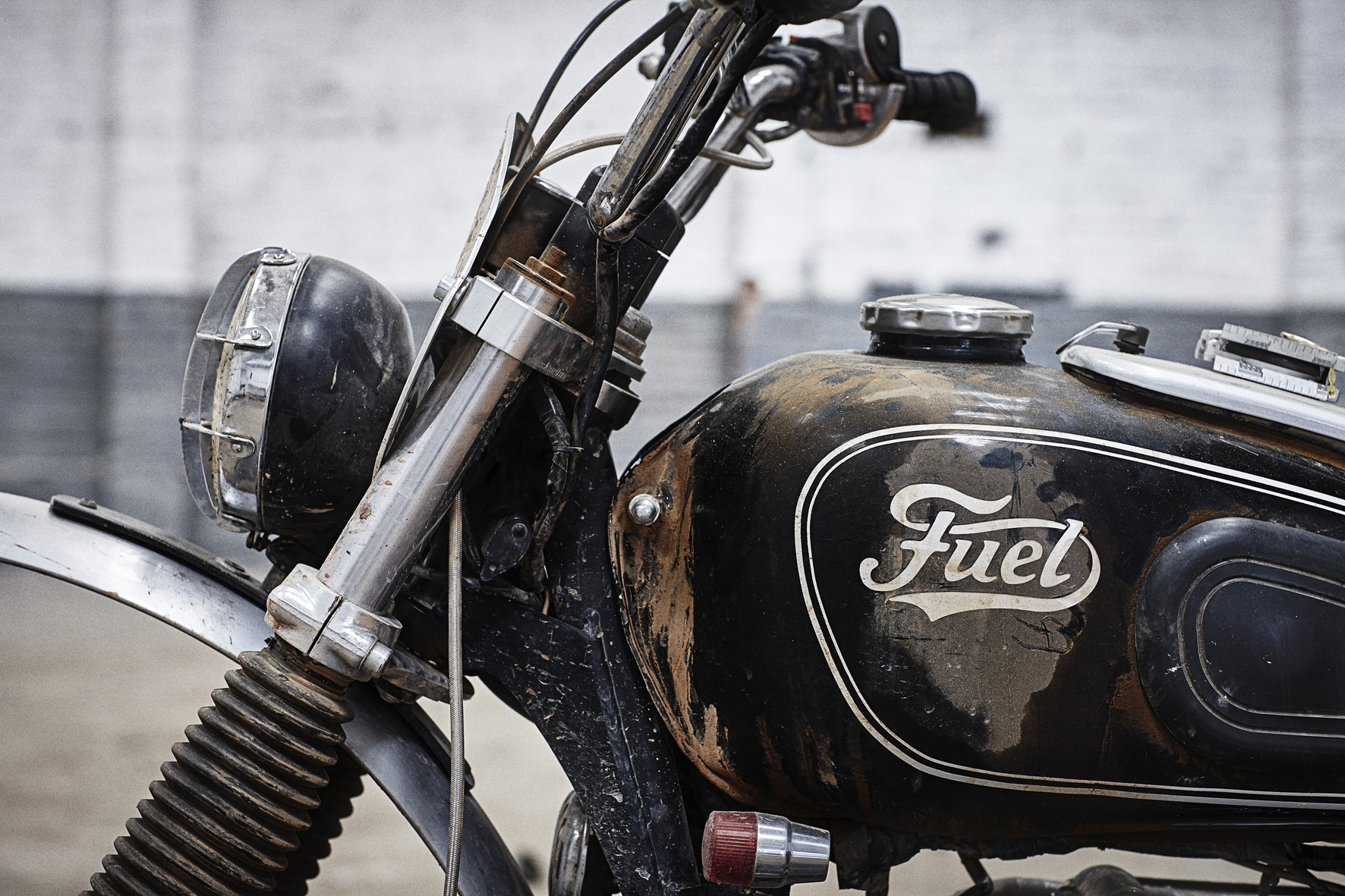

The tank is from a BMW R27 with 17 liters capacity which gives sufficient autonomy for the stages of the trip.

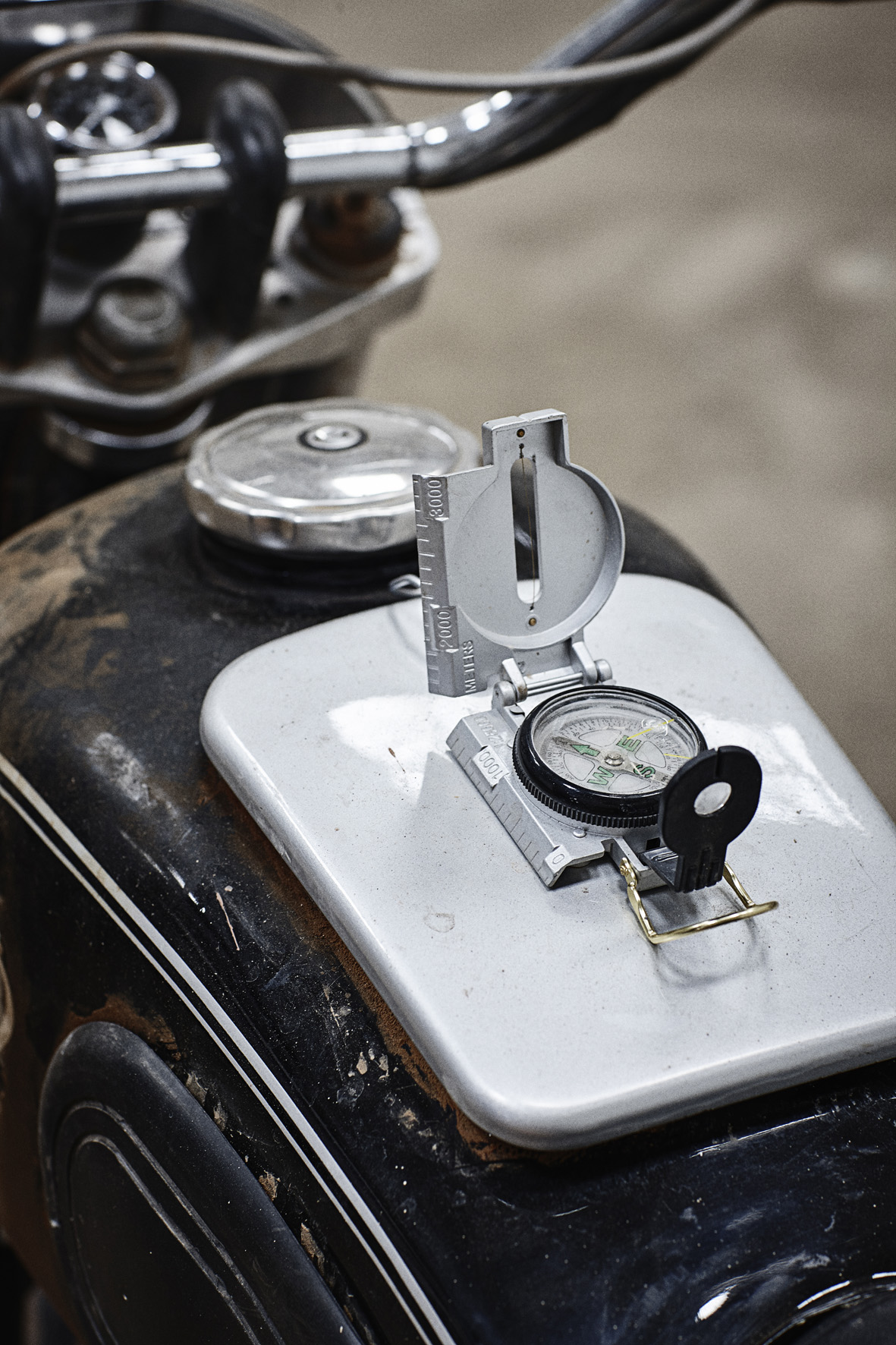

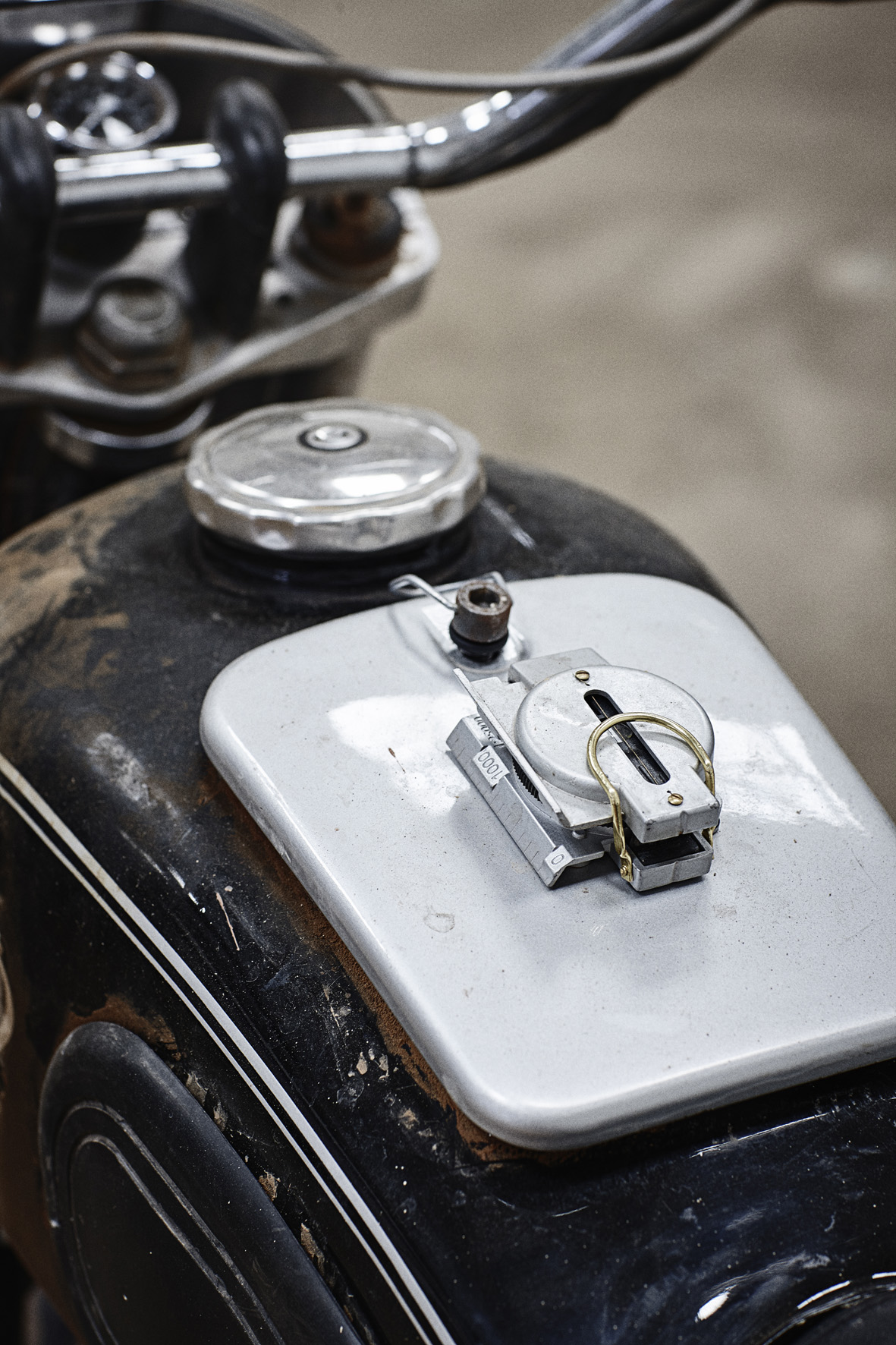

We love to add to our builds some creative details…on this bike, we have added a compass at the top of the tank ..you can’t get lost in the desert!

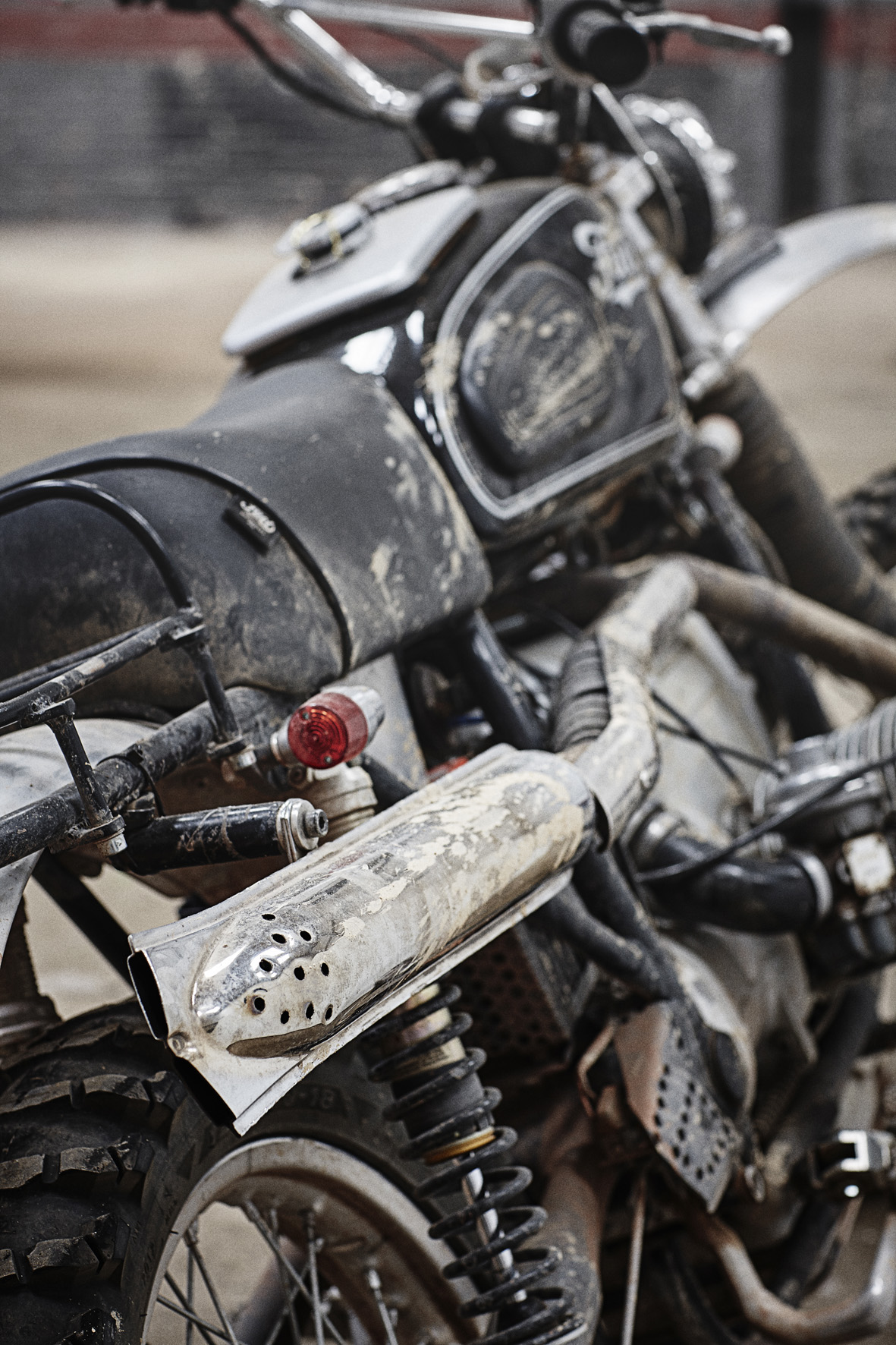

For a better scrambler look we mount a new high exhaust pipe on the right side with a modified Ural silencer at the end.

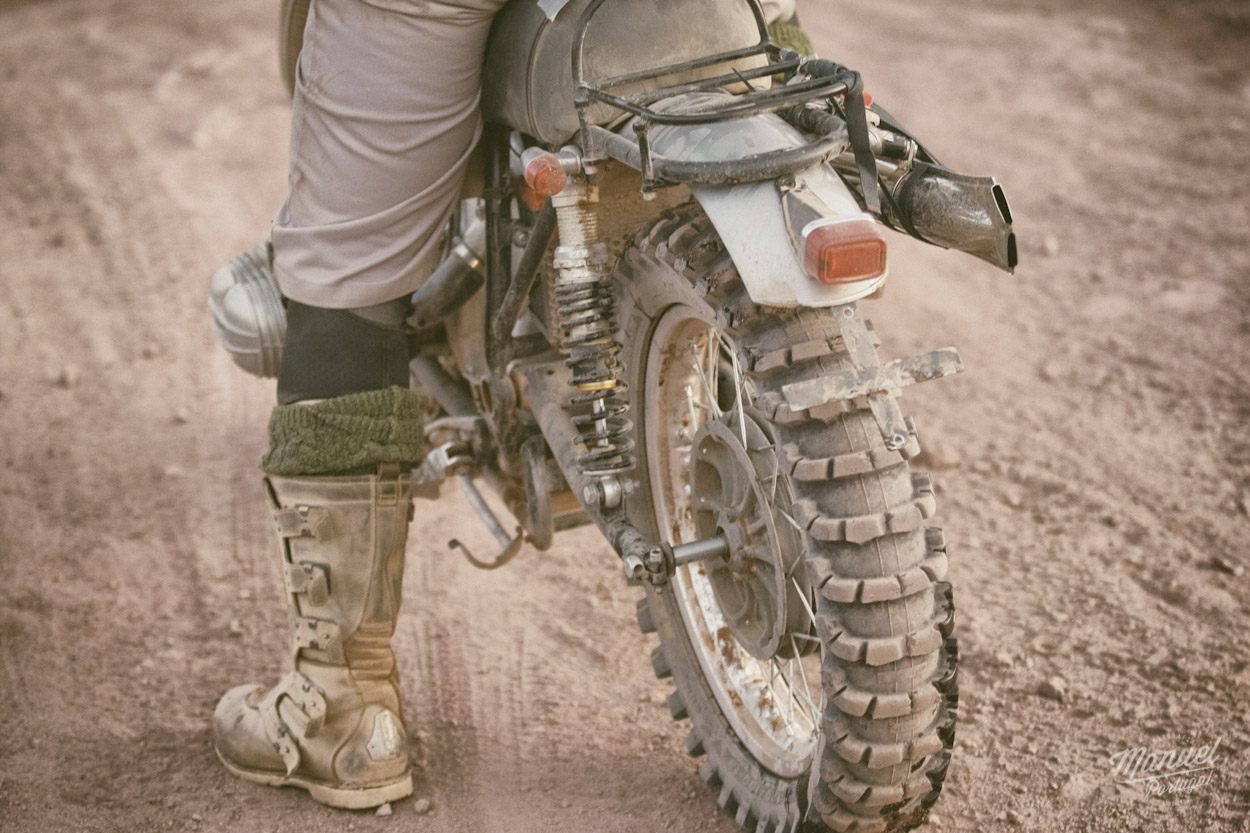

The tires was a customer request, on the rear we got a Maxxis Maxxcross Sof Terrain, a tyre designed for riding on really deep sand and mud and a Pirelli Scorpion MX on the front.
Inside the tires we mounted a tubeless sistem called Nuetech Tubliss, wich replaces conventional inner tubes with a small red 100 psi insert that creates two different pressure zones inside the tire itself. This increased tire stability and eliminates pinch flats. In turn, this allows you to run very low tire pressure for massive gains in traction and a much plusher ride.
A high seat and rear rack gives an old enduro look and practicality at the same time.

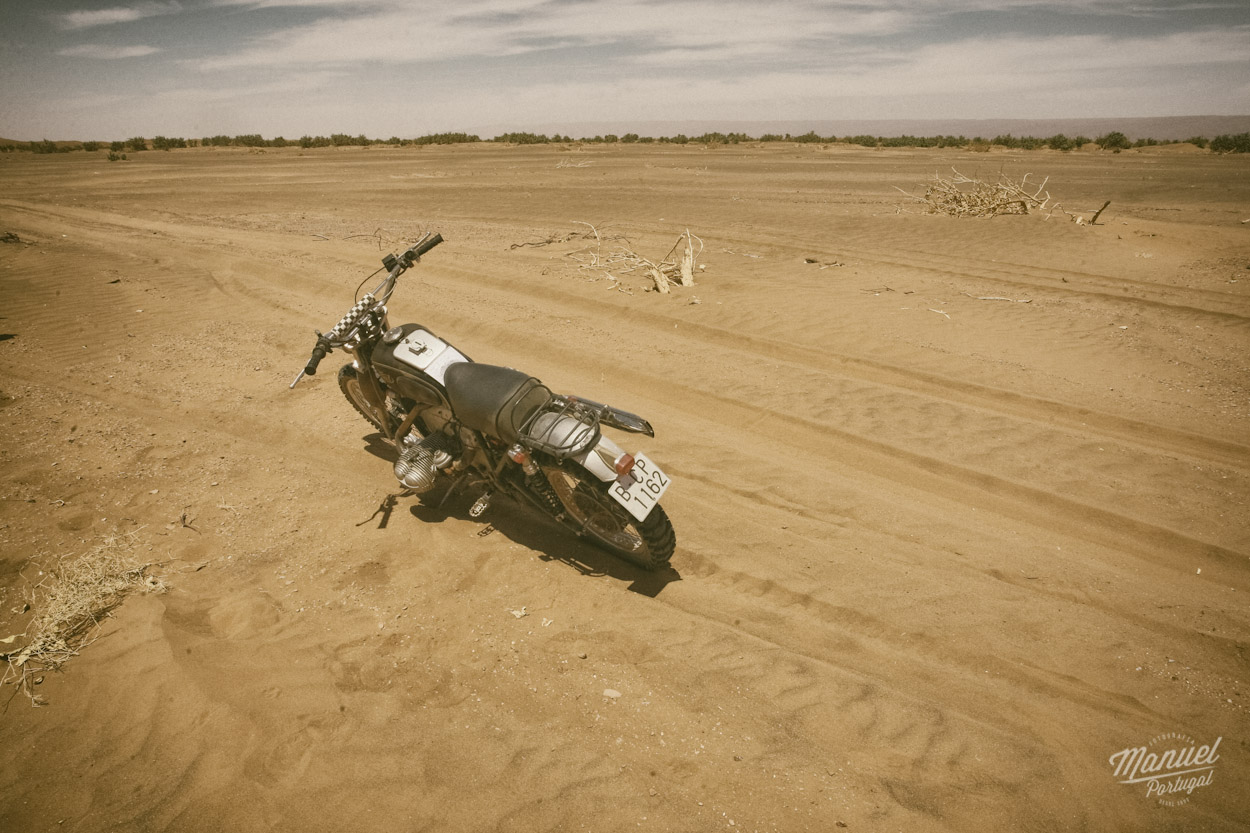

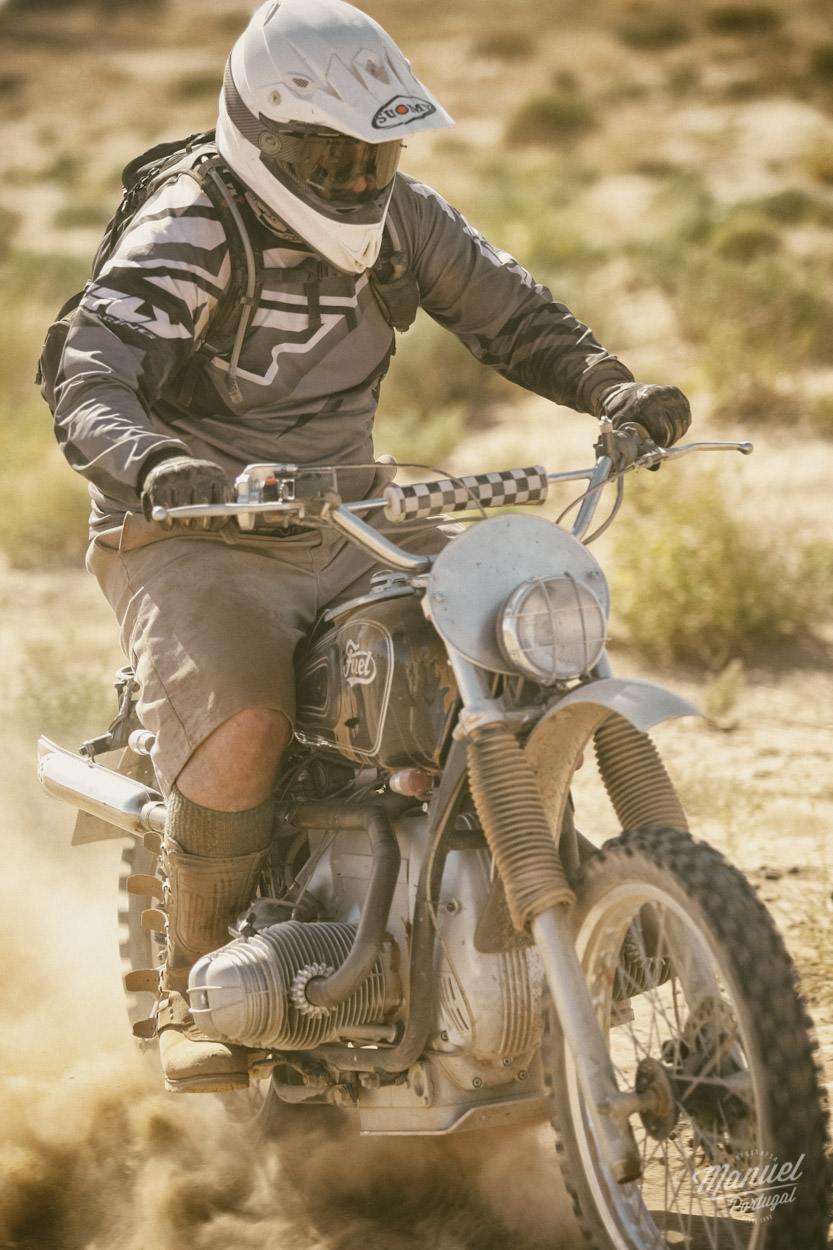

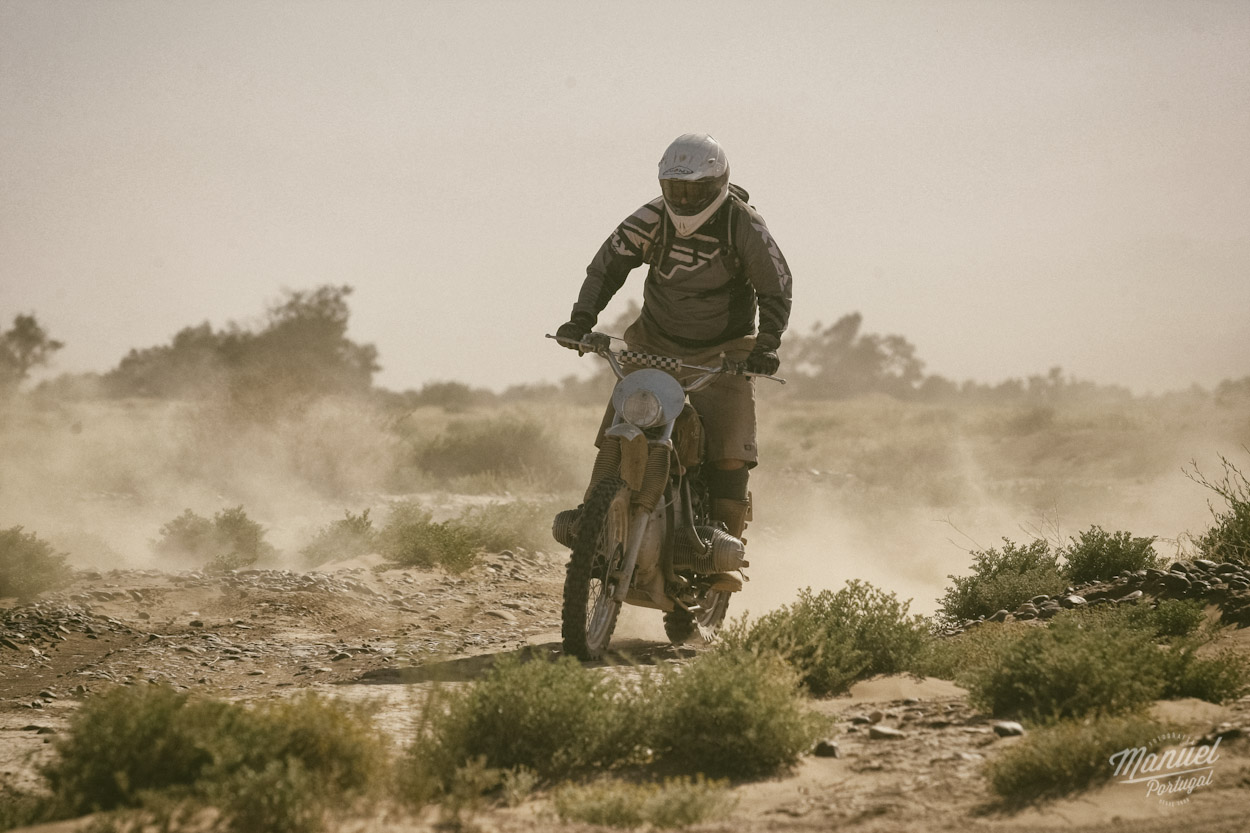

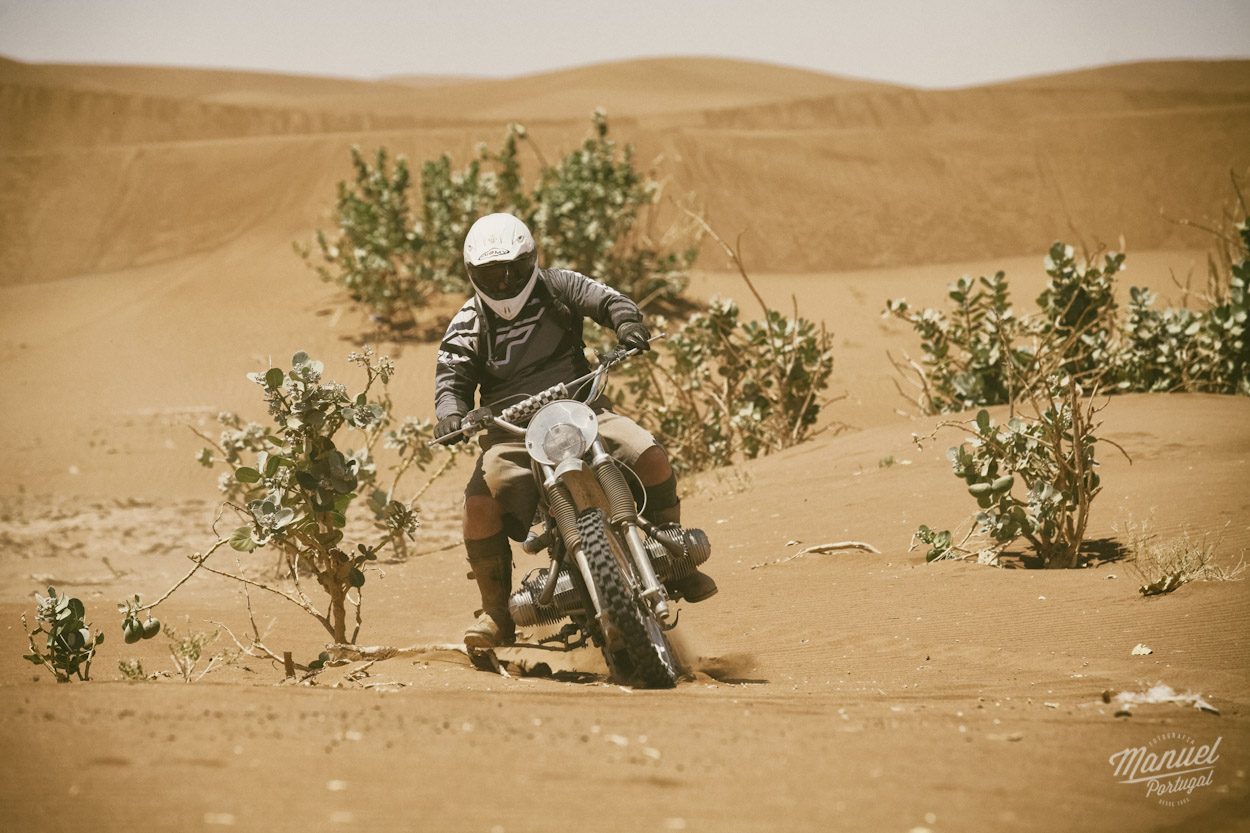

The Fuel Scram/7 finished the 2.000km trip with no damages and Mark greatly enjoyed the ride through the sand and dunes!
Hope you like

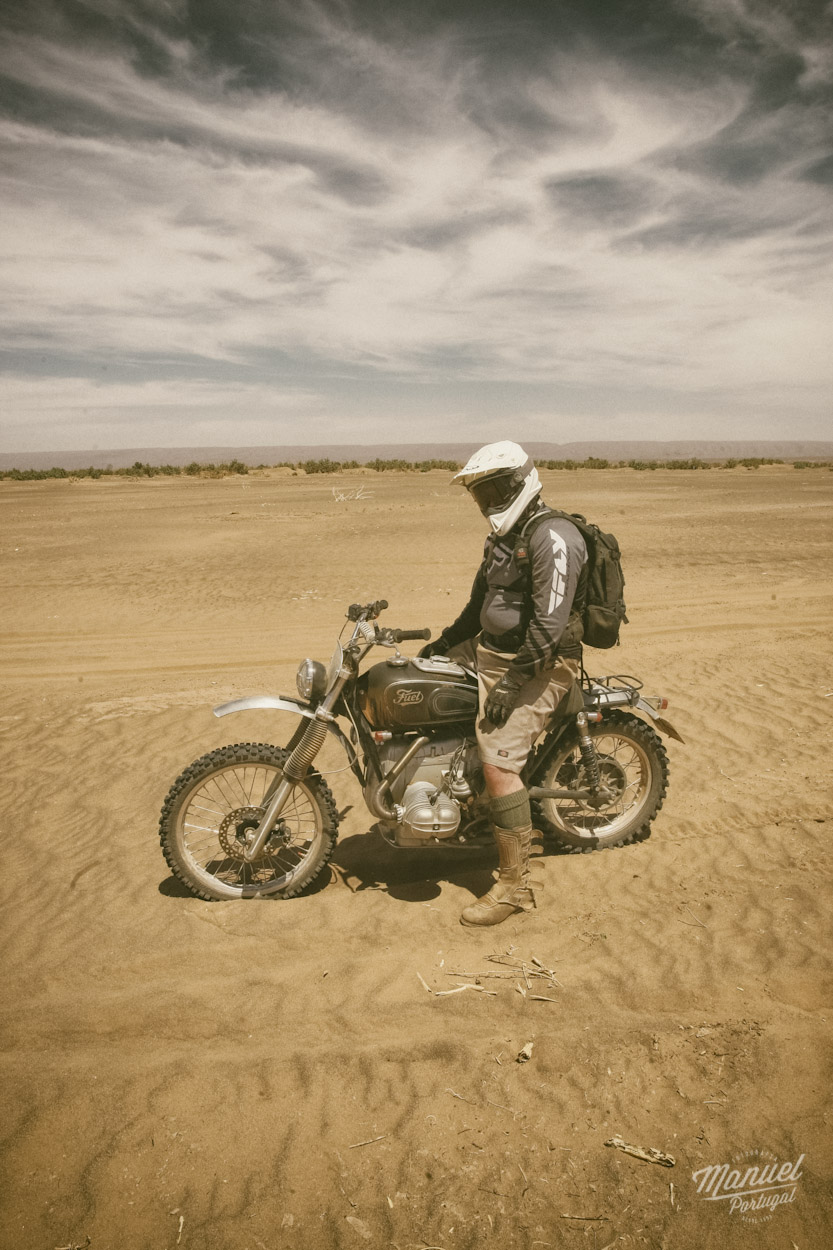

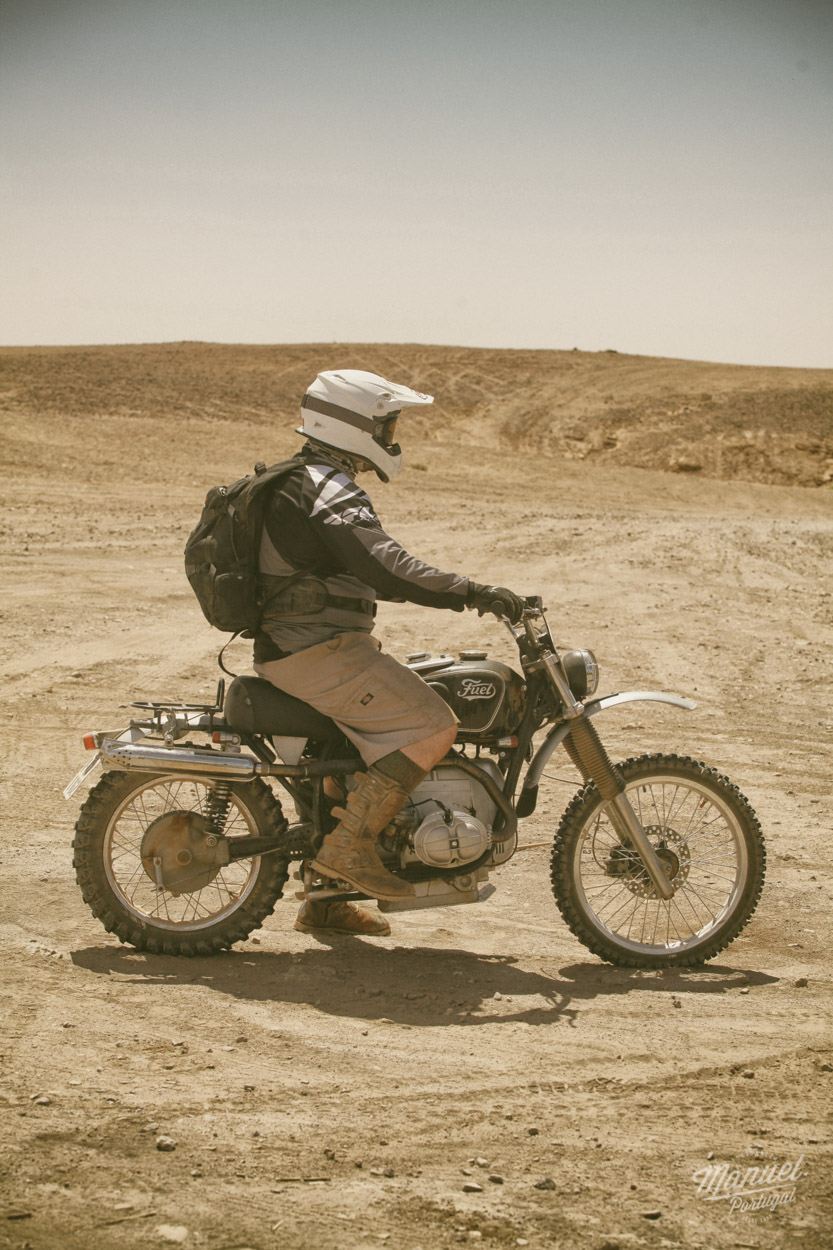

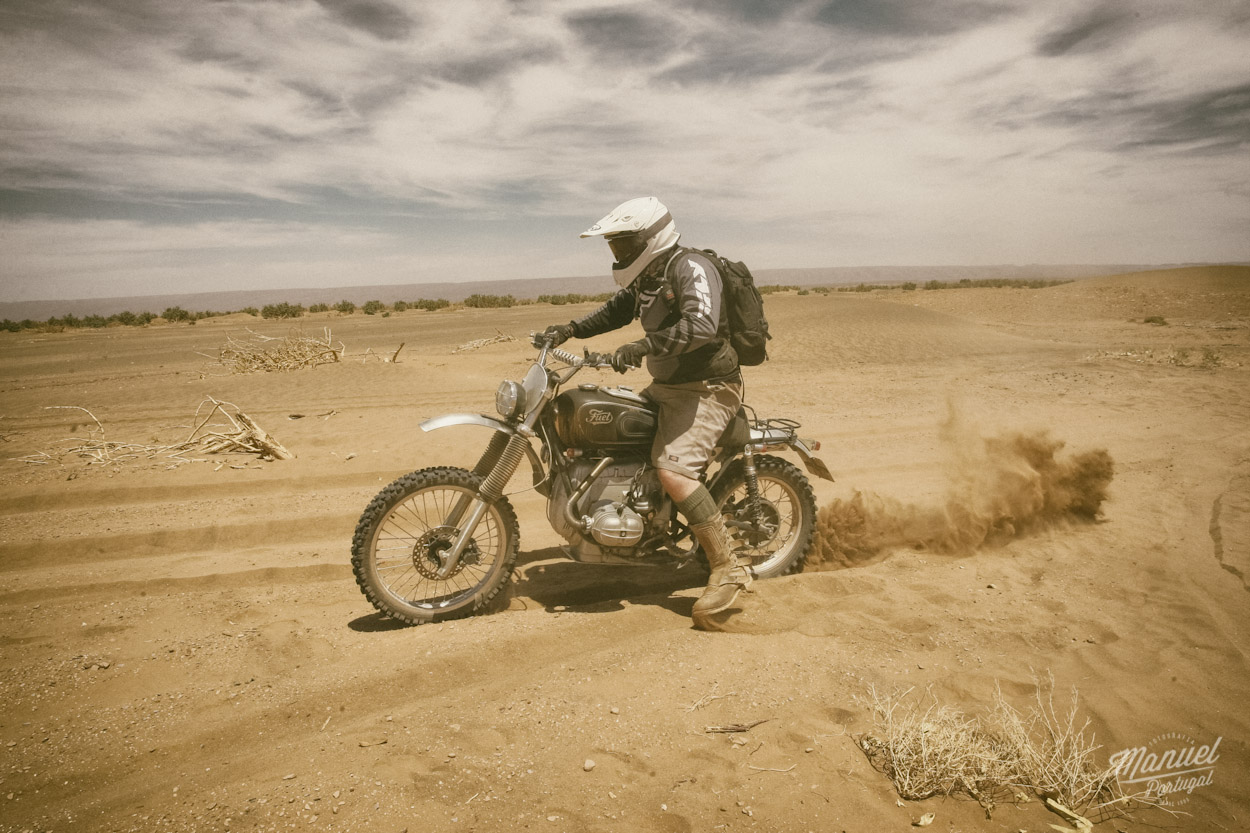

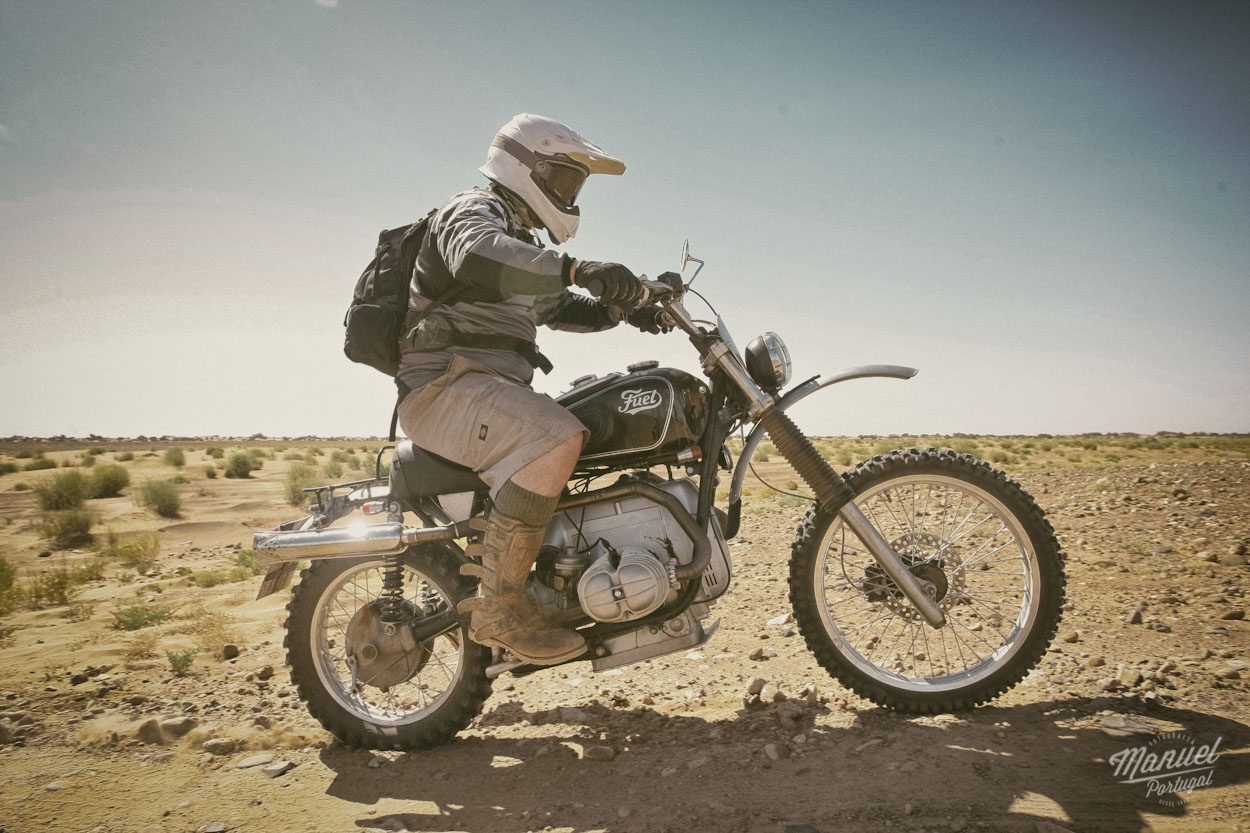

Photos by Pere Ferrer (The pics show how the bike finished the trip)
Main Mods and pars:

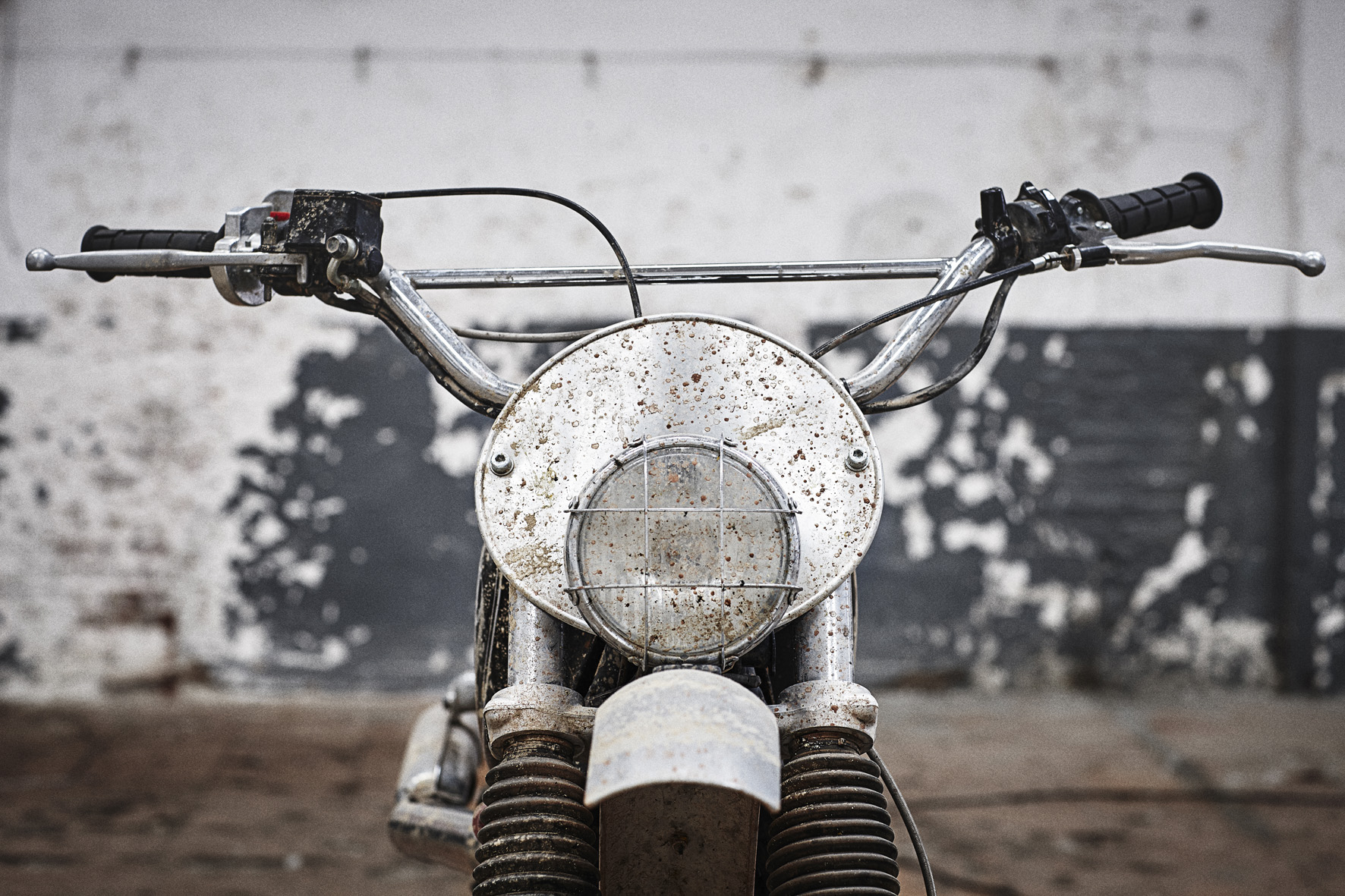

-Classic trial front light
-Analogue speedometer for BMW

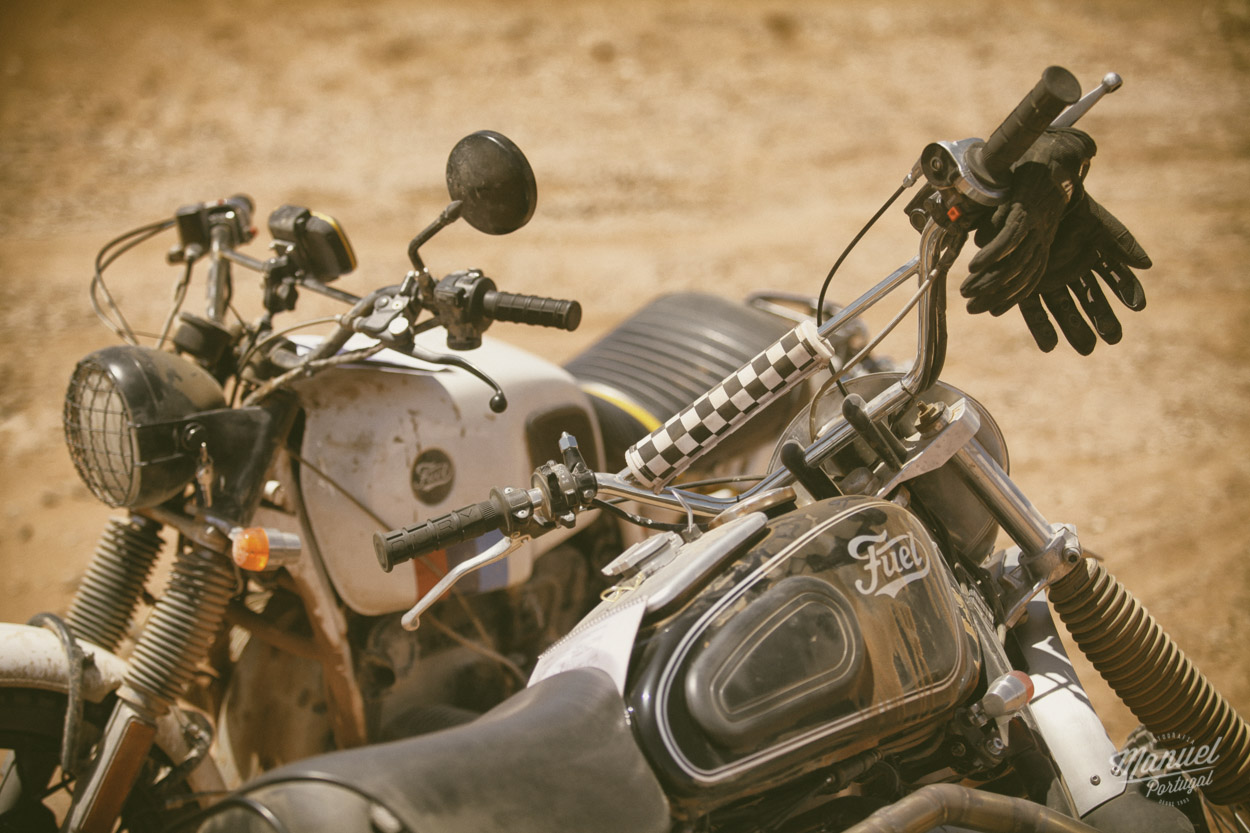

-70’s enduro handlebar
-Oury grips
-Ohlins vintage rear shock
-Maxxis Maxxcross rear tire
-Pirelli Scorpion MX front tire
-Handmade exhaust pipe
-Seat designed and built by Fuel
-Handmade subframe
-Odyssey battery
-New front and rear fenders
-Off road footpegs
At Scram Africa:
http://www.fuelmotorcycles.eu/scram-africa-2014-2/
